SIGNAL INTERFACE

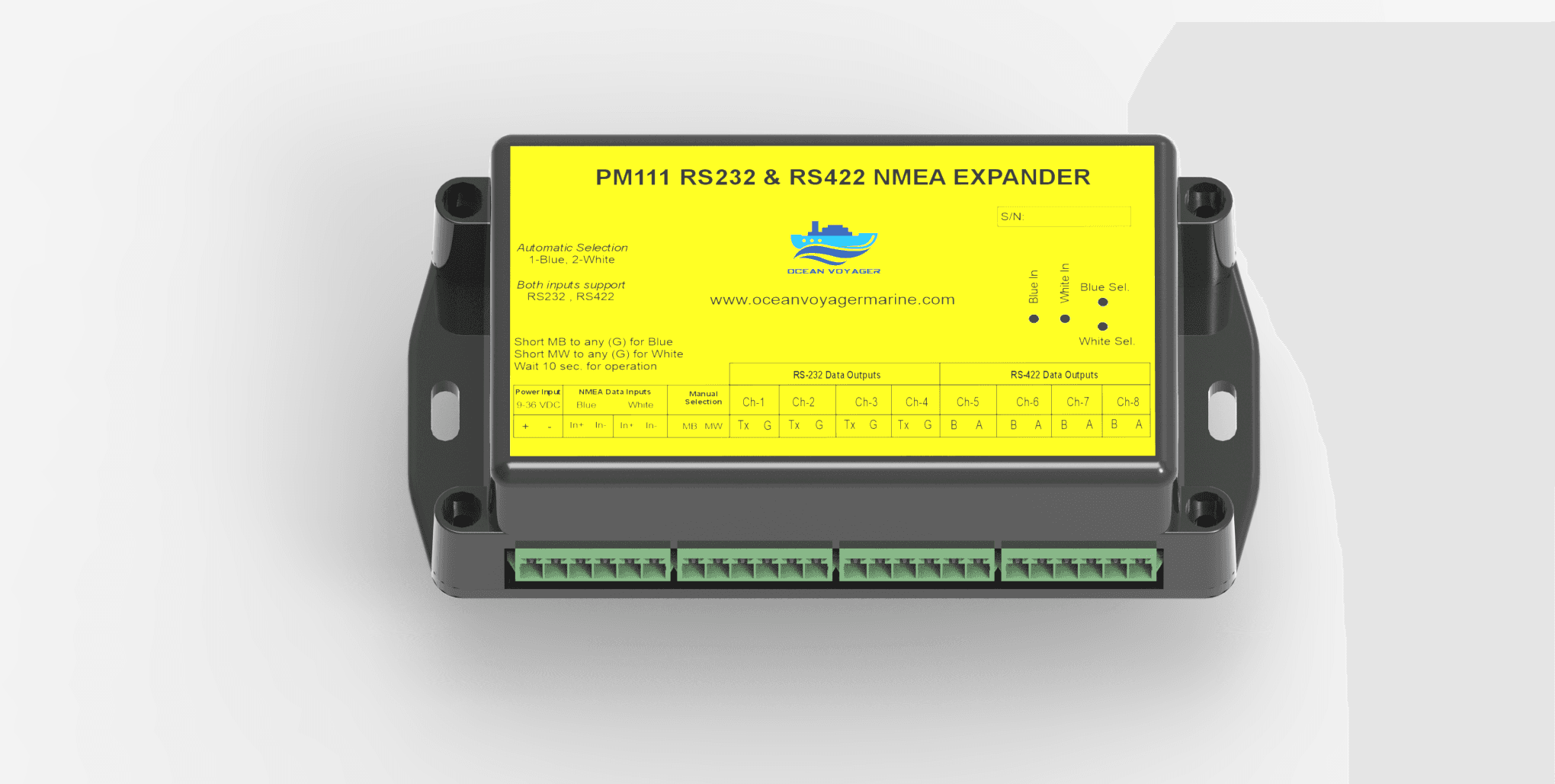

NMEA Expander
NMEA 0183 sentence multiplexer with 2 inputs and 8 isolated outputs — simultaneously routes bridge data across RS-232 and RS-422 networks with 1000 VDC port isolation.
✓2 inputs → 8 isolated outputs✓4 × RS-232 + 4 × RS-422 simultaneous✓1000 VDC port isolation✓Flange panel mount
1 / 2Technical specification
| Model | PM111 |
| Product Type | NMEA 0183 Sentence Multiplexing Solution |
| Input Ports | 2 × NMEA 0183 (RS-232 or RS-422) |
| Output Ports | 4 × RS-232 & 4 × RS-422 (Simultaneous) |
| Input Baud Rates | 4800–38400 bps |
| Output Baud Rates | 4800–38400 bps |
| Input Voltage | 9–36 VDC |
| Power Consumption | 30 mA (Min), 140 mA (Max) |
| Isolation Level | 1000 VDC |
| Reverse Polarity Protection | Supported |
| Enclosure Material | ABS (UL94 HB Flame Retardant) |
| Installation Type | Flange Panel Mount |
