REPEATER DISPLAY

ROT Repeater

Rate-of-turn repeater display — analogue-style needle and digital readout for helm and conning positions.

✓ROT sentence input✓Analogue + digital display✓Zero-centred needle✓12/24 VDC

1 / 2

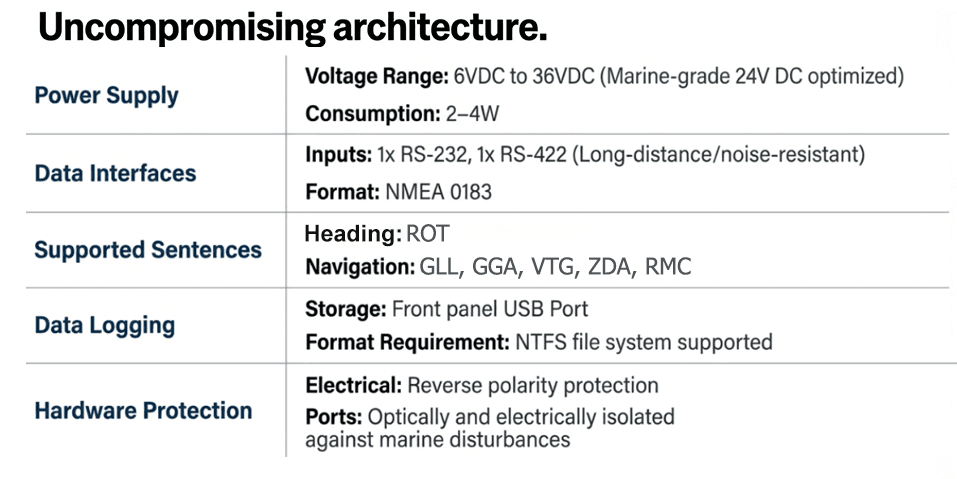

Technical specification

Model	RRT-314
Product Type	Marine Navigation Display Unit
Input Voltage	6–36 VDC (24 VDC Optimized)
Power Consumption	2–4 W
Serial Inputs	1 × RS-232, 1 × RS-422
Data Format	NMEA 0183
Supported Sentences	ROT · GLL · GGA · VTG · ZDA · RMC
Data Logging	Front Panel USB Port (Optional)
Reverse Polarity Protection	Supported
Port Isolation	Optically and Electrically Isolated
