DR-100S
Simplified Voyage Data Recorder
A Simplified Voyage Data Recorder for existing cargo vessels — the essential data set, reduced footprint and lower cost of compliance.
✓S-VDR compliant✓Reduced sensor set✓Retrofit-friendly✓Float-free capsule option
1 / 4Technical specification
| Model | DR-100S |
| Product Type | Simplified Voyage Data Recorder (S-VDR) — IMO Compliant |

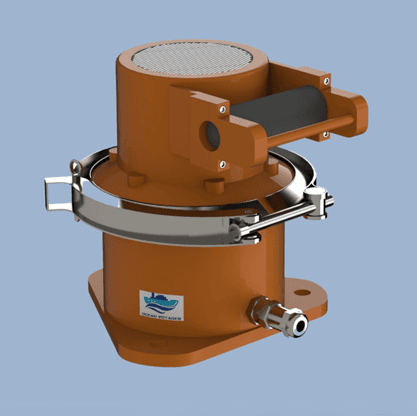

| Fixed Protective Capsule | FPC — Standard |
| Float Free Capsule | FFC — Optional |
| FPC Data Retention | Up to 12 Hours |
| FFC Data Retention | Up to 12 Hours |
| DAU Data Retention | Up to 24 Hours |
| Microphone Audio | Up to 6 Channels |
| VHF Audio | Up to 2 Channels |
| Image Recording | Radar / ECDIS — Up to 2 Channels |
| Data Types Recorded | Sensor Data · Audio Data · Image Data |
| Interface Standards | IEC 61162-1 · IEC 61162-2 |
| Network Standard | IEC 61162-450 |
| Radar / ECDIS Inputs | VGA · DVI · HDMI · YPbPr |
| Main Power Supply | AC 110–240 V, 10 A, 50/60 Hz |
